Ammeter / Voltmeter Selector Switch

Ammeter Voltmeter Selector

CE MarkedIEC 60947IP65

Ammeter and voltmeter selector switches for 3-phase measurement selection in LV switchgear and distribution boards. The SE-SA48 selects between phase A, B, C and OFF for ammeter reading; the SE-SV48 selects between phase R-S, S-T, R-T and OFF for voltmeter reading. Contact rated 10A / 600V AC with dielectric strength 2500V AC for 1 minute. Compliant with IEC 60947 and UL508 standards. CE Marked and RoHS compliant.

Enquire Now All Products

Durable

IP65 front protection; rated 600 V AC / 10 A for heavy-duty industrial switchgear.

Reliable

Certified to IEC 60947, UL508; CE Marked and RoHS compliant for global panel installations.

Efficient

22 mm panel cut-out; 100,000 electrical cycle life; ammeter and voltmeter selector variants.

Technical Data

Specifications

SE-SV48 / SE-SA48 Technical Specifications

TECHNICAL SPECIFICATIONS
Models	SE-SV48 (Voltmeter Selector) / SE-SA48 (Ammeter Selector)
Contact Rating	10A / 600V AC
Dielectric Strength	2500V AC / 1 min
Electrical Life	100,000 Cycles
Standards	IEC 60947 / UL508
Compliance	CE Marked & RoHS Compliant

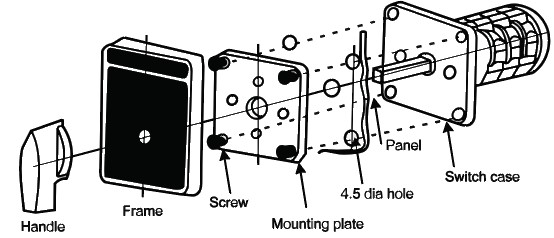

Mounting	22mm panel cut-out, Snap-on, Contact Block mounting
