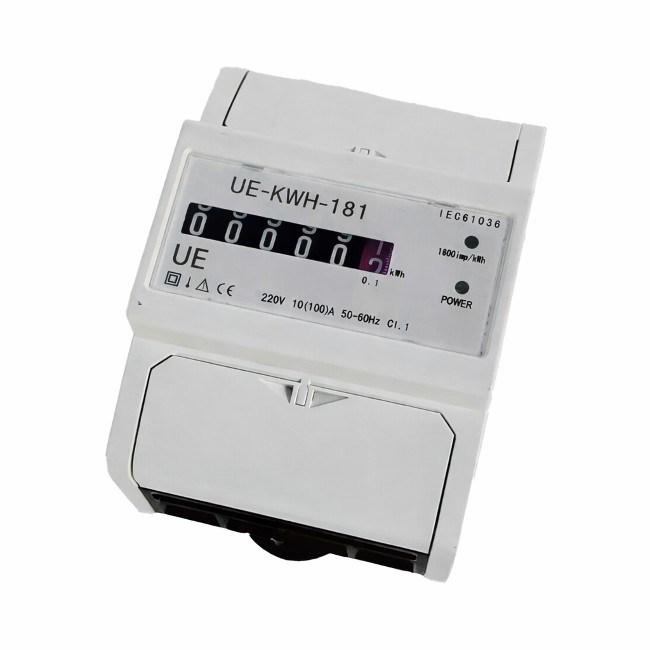

KWH Analog Meter

Kwh Analog Meter

Class 1.0230V / 10(100)AIEC 62053

A simple single-phase four-module DIN rail meter with kWh measurement only. Widely used in sub-metering systems for individual circuit or tenant energy monitoring. Convenient to install at only 0.3092kg and 76mm width. Features a 5+1 digit counter display and an impulse output of 1600 imp/kWh for remote monitoring integration. Compliant with IEC 62052-11 and IEC 62053-21.

Enquire Now All Products

Durable

Flame-resistant ABS housing; rated −25°C to +70°C operating temperature.

Reliable

Class 1.0 accuracy; compliant with IEC 62052-11 and IEC 62053-21.

Efficient

4-module DIN rail mount; 1600 imp/kWh pulse output for BMS and energy monitoring.

Technical Data

Specifications

Physical Specifications

MATERIAL
Case Material	Grey Flame-Resistant ABS
Terminal Cover	Grey Flame-Resistant ABS
Base Material	Grey Flame-Resistant ABS
Height	100 mm
Width	76 mm
Depth	65 mm
Weight (Net)	0.3092 kg

Technical Parameters

TECHNICAL PARAMETERS
Voltage	230V
Current	10(100)A
Accuracy Class	1.0
Standard	IEC 62052-11 / IEC 62053-21
Frequency	50–60 Hz
Impulse Constant	1600 imp/kWh
Display	Counter 5+1
Power Consumption	≤8VA / ≤0.4W
Starting Current	0.004Ib
Operating Temperature	−25°C to +70°C
Storage Temperature	−40°C to +80°C
Average Humidity	75%
Peak Humidity	95%
