Relay Socket

Relay Socket

8 / 11 / 14 Pin300V RatedDIN Rail

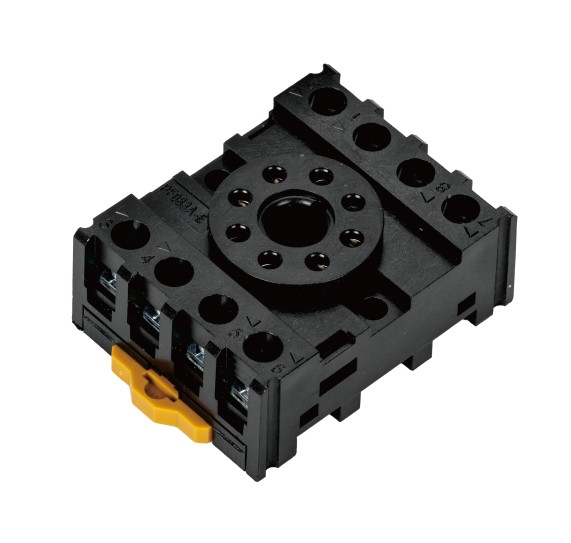

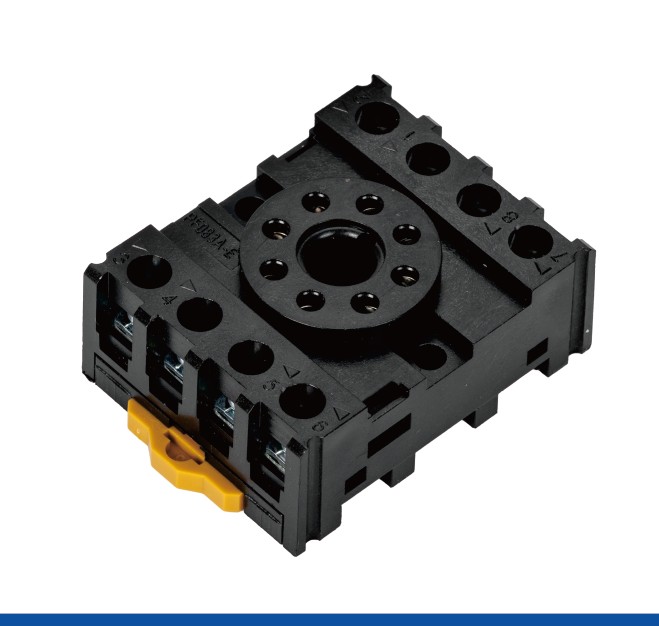

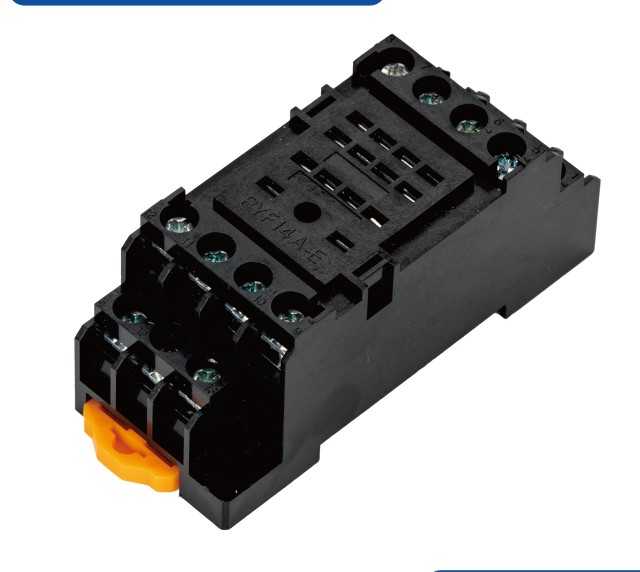

The SE-RS Series relay sockets provide reliable DIN-rail and panel-mount bases for 8-pin, 11-pin and 14-pin relays. Manufactured with high-quality screw terminals and robust housing, they support a wide range of industrial relay modules. Suitable for PLC control panels, motor starters, automation systems and safety relay applications.

Enquire Now All Products

Durable

Rated −40°C to +65°C; 2000 V/S dielectric strength for robust electrical isolation.

Reliable

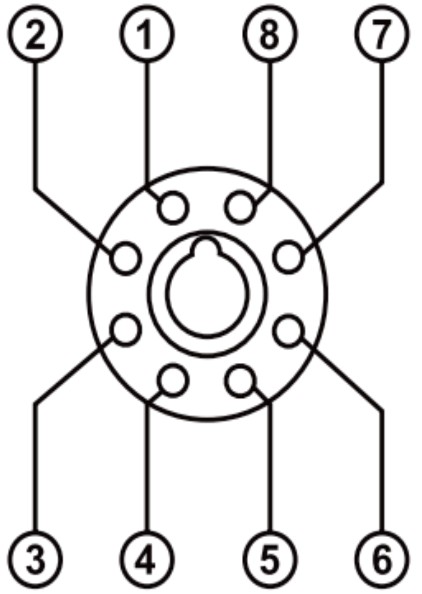

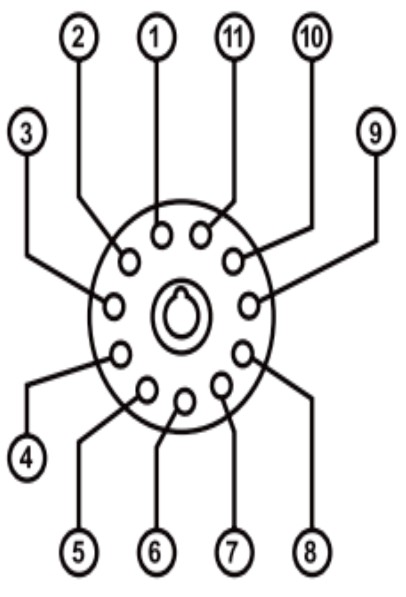

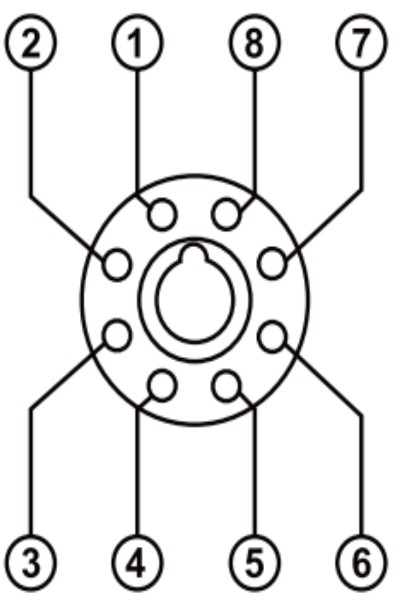

300 V rated; 8-pin, 11-pin and 14-pin configurations for common relay coil types.

Efficient

DIN rail or panel mount; accepts 0.5–2.5 mm² screw terminations; 7–12 A rated.

Technical Data

Specifications

Relay Socket Specifications

Parameter	SE-RS14A-E	SE-RS08A-E	SE-RS8PFA
Rated Current	7A	10A	12A
Rated Voltage	300V	300V	300V
Dielectric Strength	2000V/S	2000V/S	2000V/S
Screw Torque	1.0 N·m	1.0 N·m	1.0 N·m
External Wire (AWG)	20–14 AWG	20–14 AWG	20–14 AWG
External Wire (mm²)	0.5–2.5 mm²	0.5–2.5 mm²	0.5–2.5 mm²
Ambient Temperature	−40°C to +65°C	−40°C to +65°C	−40°C to +65°C
Weight	33 g	49 g	55 g
