4 Inch Fan with Guard

Fan 4 Inch

AC 220V80 CFM42 dB(A)

Compact 4-inch cooling fan for ventilation in electrical panels and control cabinets. Helps reduce heat and maintain proper airflow for equipment. Comes with guard and mesh filter for safety and protection against dust and debris. Easy to install with low noise operation — suitable for industrial and commercial panel enclosures where quiet, reliable ventilation is required.

Enquire Now All Products

Durable

Impedance-protected motor rated for continuous operation in industrial panel enclosures.

Reliable

Dielectric tested to 1800 V/0.5 mA/3 s; automatic locked-rotor protection.

Efficient

80 / 85 CFM airflow at 19 / 17 W; 120×120×38 mm compact frame.

Technical Data

Specifications

Electrical & Performance Specifications

ELECTRICAL SPECIFICATIONS
Part No.	125038

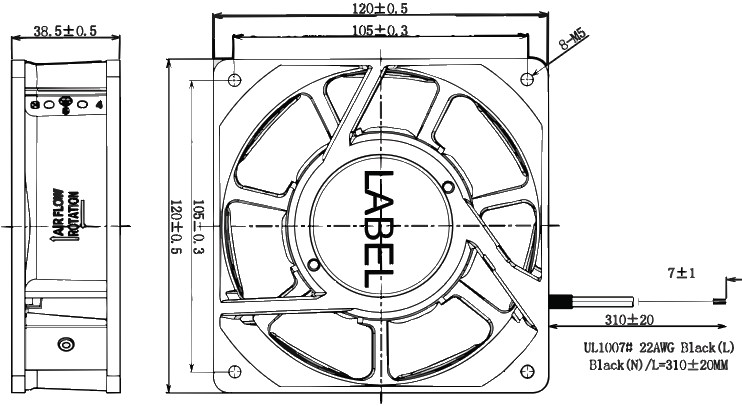

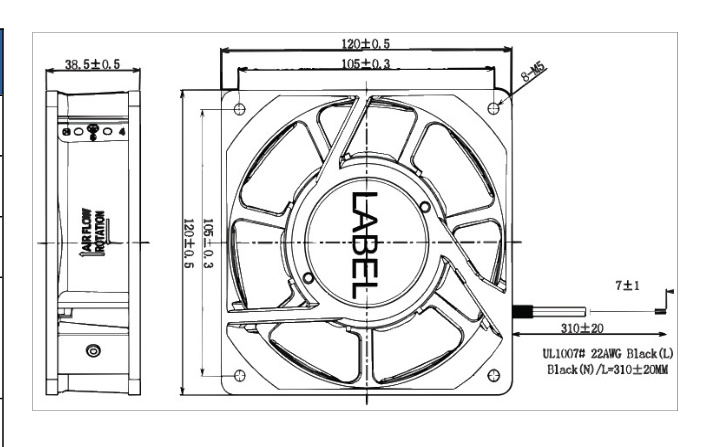

Dimensions	120 × 120 × 38 mm
Rated Voltage	AC 220V
Voltage Range	AC 200V – 240V
Frequency	50/60 Hz
Rated Current	0.12 / 0.11A ±0.02A
Power Consumption	19 / 17W ±10%
Speed	2500 / 2900 RPM ±10%

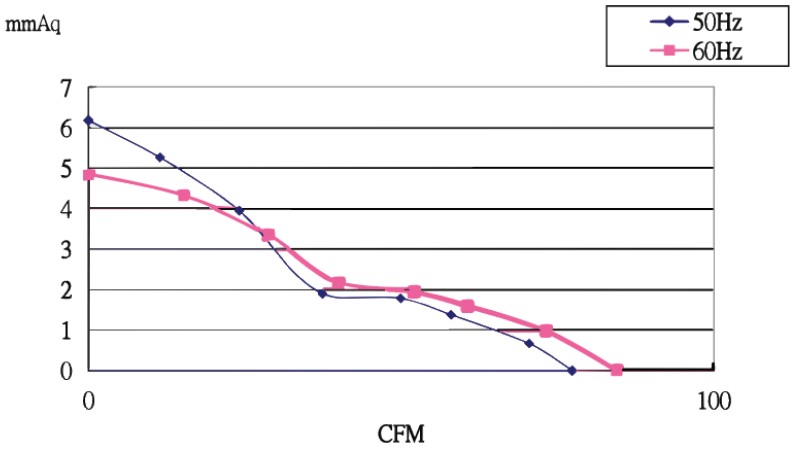

Max. Air Flow	80 / 85 CFM ±10%
Max. Static Pressure	5.1 mm H&sub2;O
Noise Level	42 dB(A)
Weight	460 g

Safety Ratings

ELECTRICAL SPECIFICATIONS
Dielectric Strength	1800V / 0.5mA / 3s
Insulation Resistance	Impedance Protected
Temperature Rise (Run)	Rated Voltage Δt ≤70°C
Locked Rotor Protection	Rated Voltage Δt ≤30°C
