6 Inch Fan with Guard

Fan 6 Inch

AC 220V164 CFM49 dB(A)

Compact 6-inch cooling fan for ventilation in electrical panels and control cabinets. Delivers significantly higher airflow than the 4-inch model, making it ideal for larger enclosures and server racks. Comes with guard and mesh filter for safety and dust protection. Suitable for industrial and commercial applications where greater heat dissipation is required.

Enquire Now All Products

Durable

Impedance-protected motor for continuous high-volume panel cooling applications.

Reliable

Dielectric tested to 1800 V/0.5 mA/3 s; locked rotor protection standard.

Efficient

151 / 164 CFM high-volume airflow at 32 / 30 W; 172×150×51 mm frame.

Technical Data

Specifications

Electrical & Performance Specifications

ELECTRICAL SPECIFICATIONS
Part No.	GH17250HA2BL

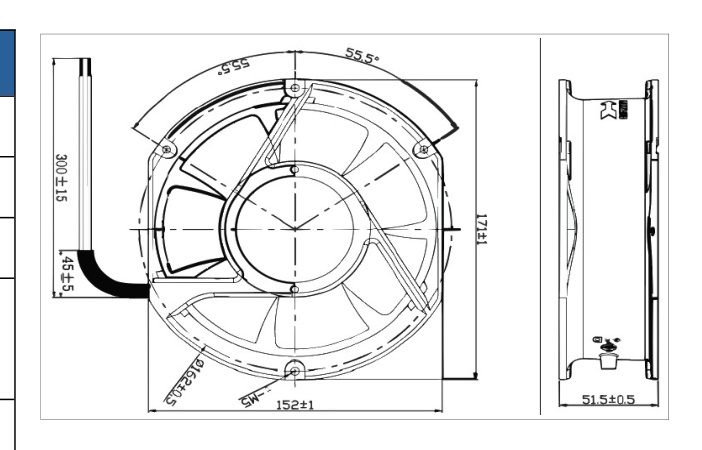

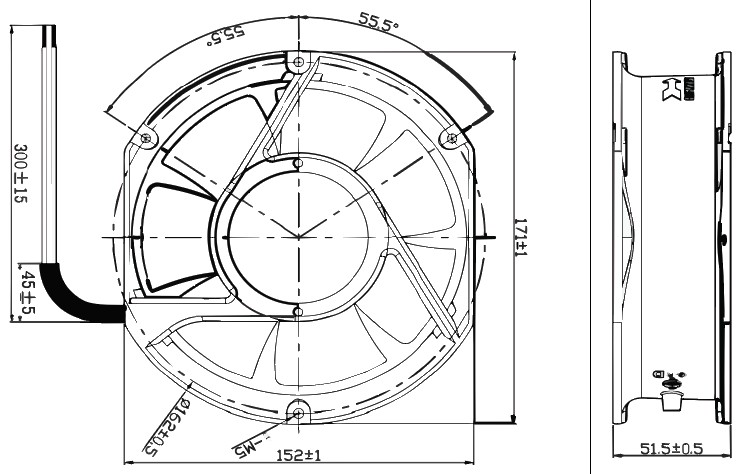

Dimensions	172 × 150 × 51 mm
Rated Voltage	AC 220V
Voltage Range	AC 200V – 240V
Frequency	50/60 Hz
Rated Current	0.24 / 0.22A ±0.02A
Power Consumption	32 / 30W ±10%
Speed	2600 / 2800 RPM ±10%
Max. Air Flow	151.2 / 164.2 CFM ±10%
Max. Static Pressure	10.8 / 5.4 mm H&sub2;O
Noise Level	49.2 dB(A)
Weight	480 g

Safety Ratings

ELECTRICAL SPECIFICATIONS
Dielectric Strength	1800V / 0.5mA / 3s
Insulation Resistance	Impedance Protected
Temperature Rise (Run)	Rated Voltage Δt ≤70°C
Locked Rotor Protection	Rated Voltage Δt ≤30°C
