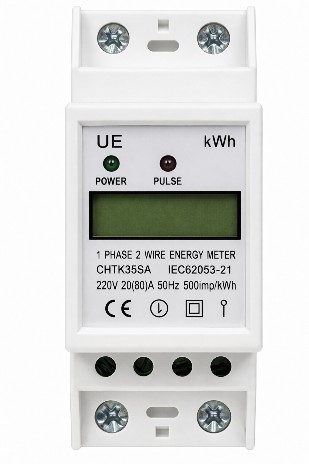

KWH Digital Meter (Single Phase)

Kwh Digital Meter Single

Class 1 / Class 2IEC 62053-21DIN RailPulse Output

The DIN Rail Single Phase KWH Digital Meter is a compact and reliable meter designed to measure active energy consumption (kWh) in single-phase AC electrical systems. It is suitable for residential, commercial, and industrial applications and complies with international metering standards. Available with LCD or mechanical counter display and pulse output (SO) for remote monitoring integration.

Enquire Now All Products

Durable

Rated −25°C to +55°C operation; −35°C to +65°C storage; ABS flame-resistant housing.

Reliable

Class 1 / Class 2 accuracy to IEC 62053-21; reverse energy detection.

Efficient

DIN rail mount; SO pulse output; LCD or mechanical counter display options available.

Technical Data

Specifications

Single Phase Digital Meter Specifications

TECHNICAL SPECIFICATIONS
Meter Type	Single Phase KWH Digital Meter
Mounting	DIN Rail
Measurement	Active Energy (kWh)
Accuracy Class	Class 1 / Class 2
Standard	IEC 62053-21 / GB/T 17215.321-2008
Frequency	50 Hz / 60 Hz
Display	LCD or Mechanical Counter
Operating Temperature	−25°C to +55°C
Storage Temperature	−35°C to +65°C
Humidity	≤95% RH
Installation	Indoor Use
