Perforated DIN Rail

SE-DR Panel Mounting & Wiring
Unity Electro Pte Ltd
Perforated Din Rail
EN 6071535mm ProfileGalvanised Steel

Perforated DIN rail for mounting electrical components in panels, switchboards and control cabinets. Manufactured to EN 60715 standard in high-strength galvanised steel, the 35mm top-hat profile is compatible with all DIN-mounted devices. The perforated design enables lightweight mounting and easy component repositioning without reducing structural integrity. Standard 2000mm lengths can be cut to any panel dimension.

Enquire Now All Products

Durable

Galvanised steel with cold-dip zinc coating; resists corrosion in humid panel environments.

Reliable

Conforms to EN 60715 standard; accepts all standard DIN rail mounting devices.

Efficient

Standard 35×7.5mm top-hat profile; 2000mm lengths for minimal cut wastage.

Technical Data

Specifications

SE-DR Perforated DIN Rail
SPECIFICATIONS
Product TypeDIN Rail — Perforated
ModelSE-DR
StandardEN 60715
MaterialSteel, Galvanised
ColorSilver (Cold Dipped)

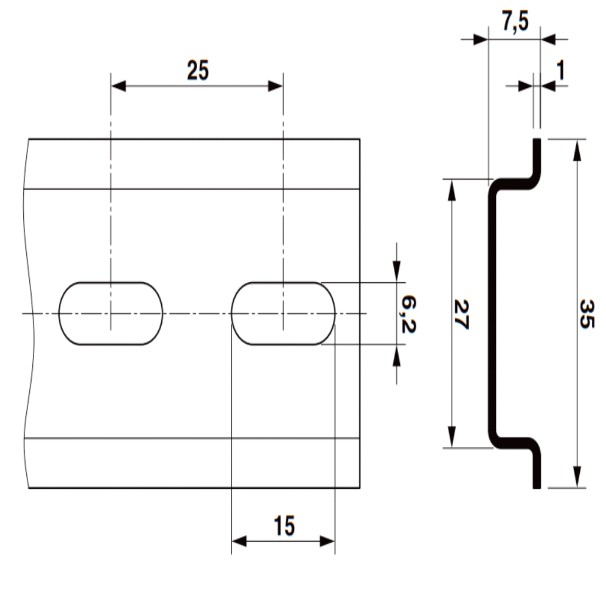

ProfileStandard 35×7.5 mm Top-Hat
Width35 mm
Depth7.5 mm
Length2000 mm
Hole Width15 mm
Hole Height6.2 mm
Hole Spacing25 mm
Standards & ComplianceEN 60715Galvanised Steel35mm Profile
Key Benefits

Features

  • Manufactured to EN 60715 standard
  • High-strength galvanised steel construction
  • Excellent corrosion and wear resistance
  • Perforated design for easy positioning and lightweight mounting
  • Compatible with all standard DIN-mounted components
  • Easy cut-to-length installation
  • Durable for long-term industrial use
Typical Use Cases

Applications

  • Electrical control panels
  • Distribution boards
  • Industrial automation systems
  • Railway and infrastructure projects
  • PLC and instrumentation cabinets
  • Power distribution systems
  • Switchgear assemblies
