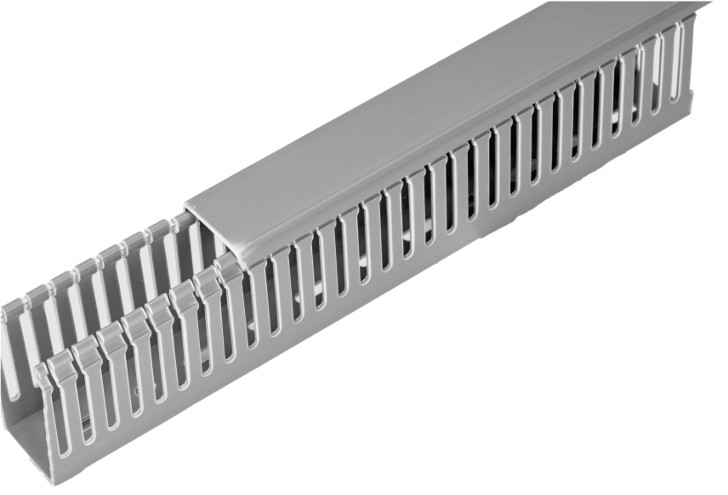

Halogen Free Cable Trunking

Cable Trunking

Halogen FreeUL94 V0Rail Vehicle Rated

Halogen-free cable trunking for cable routing and installation in electrical panels. Suitable for organising and protecting cables in industrial and automation systems. Consists of upper cover, divider and mounting base for neat cable separation and easy maintenance. The slotted design allows easy cable entry and wiring arrangement. Fire protection rated for rail vehicles to DIN EN 45545-2 at HL 1, HL 2 and HL 3 levels. Available in light grey and dark grey.

Enquire Now All Products

Durable

PC/ABS co-extrusion with UL 94 V0 flame-retardant rating; self-extinguishing in fire.

Reliable

Halogen-free; rated to DIN EN 45545-2 HL1/HL2/HL3 for rail and panel environments.

Efficient

2000mm standard lengths with customisable widths and heights for any wiring layout.

Technical Data

Specifications

Cable Trunking Specifications

SPECIFICATIONS
Product Type	Halogen-Free Cable Trunking (Wiring Duct)
Material	PC/ABS
Color	Light Grey / Dark Grey
Length	2000 mm
Width	Customizable
Height	Customizable
Flammability	UL94 V0
Rail Vehicle Fire (R22)	DIN EN 45545-2 — HL 1 / HL 2 / HL 3
Rail Vehicle Fire (R23)	DIN EN 45545-2 — HL 1 / HL 2 / HL 3
Halogen Content	Halogen-Free
