Push Button SE-PB Series | OEM Products

Push Button Se Pb

22mm FlushNC / NOMomentary4 Colours

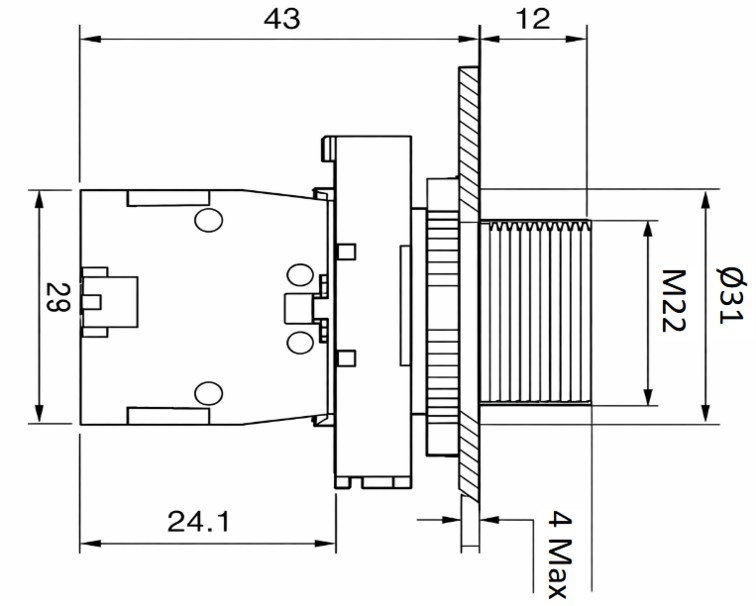

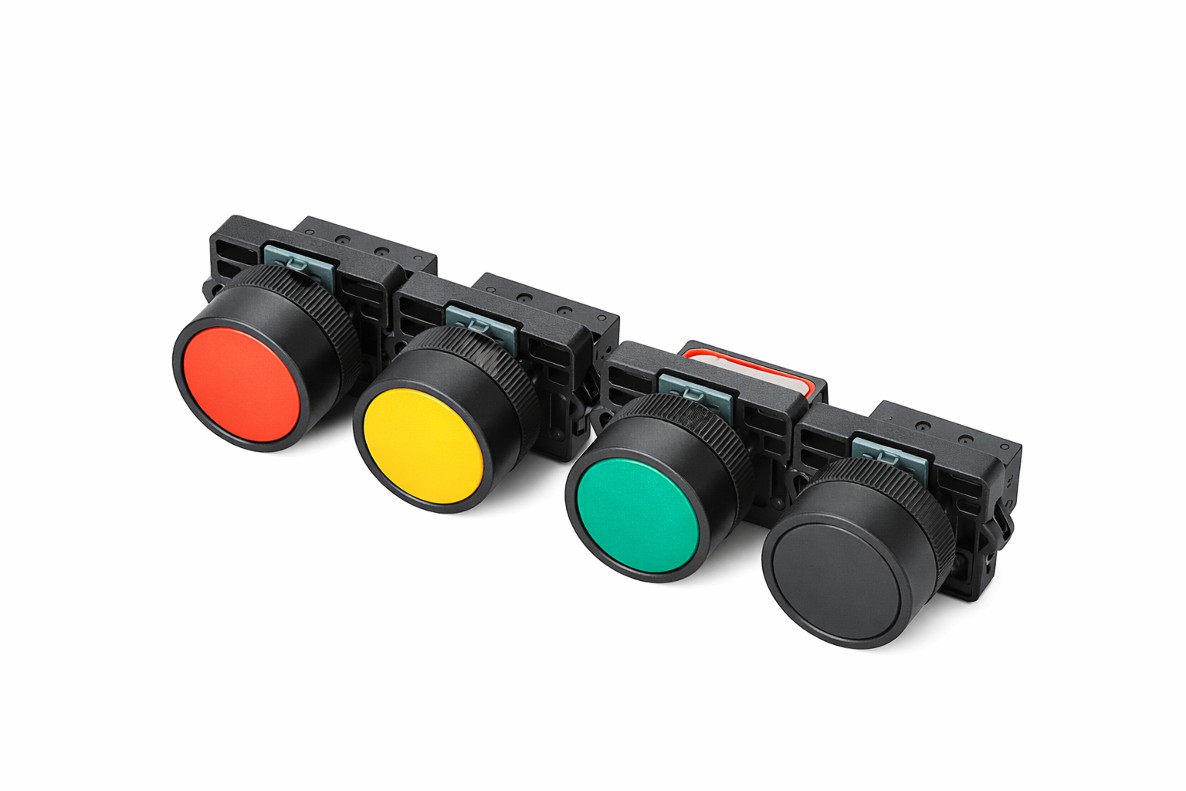

The SE-PB Series is a range of 22mm flush momentary push buttons for industrial control panels and machine interfaces. Available in four colours — Red, Green, Yellow and Black — with either Normally Closed (NC) or Normally Open (NO) contacts. Standard 22mm panel cut-out allows direct retrofit into existing switchboards and control enclosures. M22 thread and 43mm body depth. Durable construction suitable for demanding industrial environments.

Enquire Now All Products

Durable

M22 thread body; 43 mm depth; polycarbonate actuator for impact and UV resistance.

Reliable

NC and NO contact types; momentary action tested to standard 22 mm switching requirements.

Efficient

Standard 22 mm panel cut-out; 4 colour options (Red/Green/Yellow/Black) for intuitive panel layout.

Technical Data

Specifications

SE-PB Series Push Button Models

Item No.	Description	Color	Contact
SE-PBRNC	22mm Flush Button, Momentary	R	NC
SE-PBGNC	22mm Flush Button, Momentary	G	NC
SE-PBYNC	22mm Flush Button, Momentary	Y	NC
SE-PBBNC	22mm Flush Button, Momentary	B	NC
SE-PBRNO	22mm Flush Button, Momentary	R	NO
SE-PBGNO	22mm Flush Button, Momentary	G	NO
SE-PBYNO	22mm Flush Button, Momentary	Y	NO
SE-PBBNO	22mm Flush Button, Momentary	B	NO
