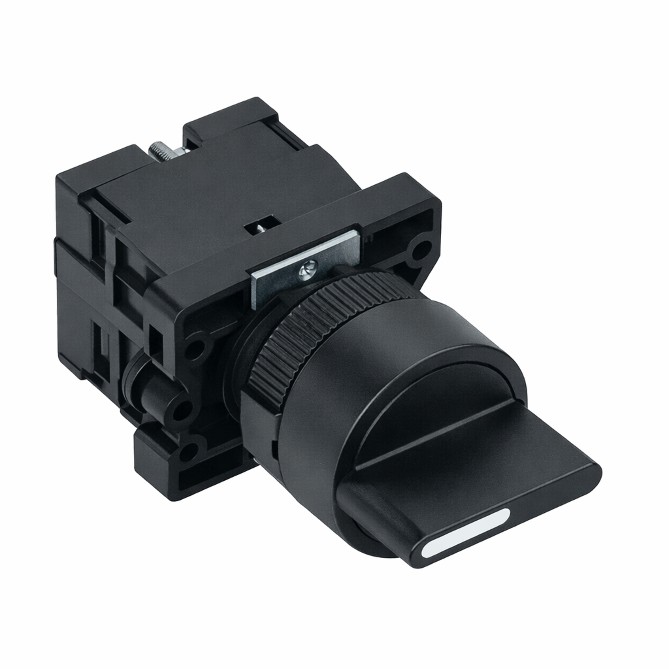

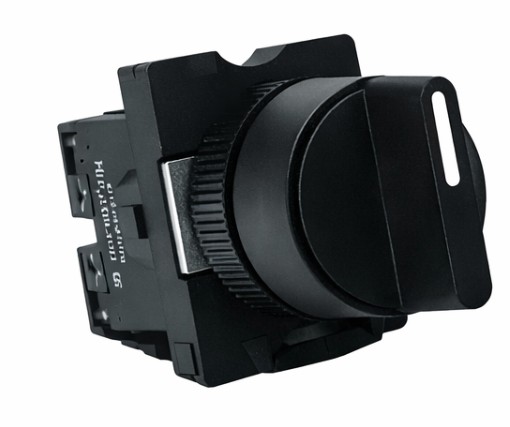

Rotary Switch

Rotary Switch

CE & RoHS22mm Snap-OnIEC 60947

Modular snap-on rotary switch contact block for use with 22mm selector switch and push button operator heads. High mechanical durability for demanding control applications. Clip-on mounting to any 22mm control system operator head makes combination and replacement simple. Terminal capacity 0.5–2.5mm² for standard control wiring.

Enquire Now All Products

Durable

Rated insulation 690 V; 10 A continuous current; flame-retardant operator housing.

Reliable

Certified to IEC 60947-1 and IEC 60947-5-1; UL508 approved; CE Marked and RoHS compliant.

Efficient

Snap-on to any 22 mm operator head; screw terminal 0.5–2.5 mm²; key-lock variant available.

Technical Data

Specifications

SE-PBRS Rotary Switch Specifications

ELECTRICAL RATING
Model	SE-PBRS
Rated Insulation Voltage	690V
Rated Operational Voltage	600V AC
Rated Current	10A
Frequency	50/60 Hz
Panel Cut-Out	Ø22 mm
Mounting	Clip-on to 22mm operator head
Terminal Capacity	0.5 – 2.5 mm²
Standards	IEC 60947-1 / IEC 60947-5-1 / UL508
Compliance	CE Marked & RoHS Compliant
Contact Type	Modular snap-on contact block
