Branching Terminal

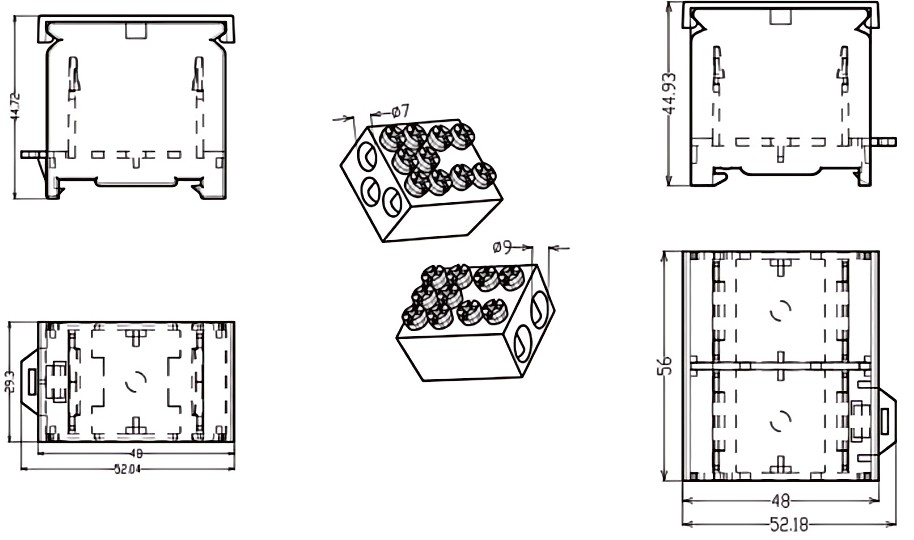

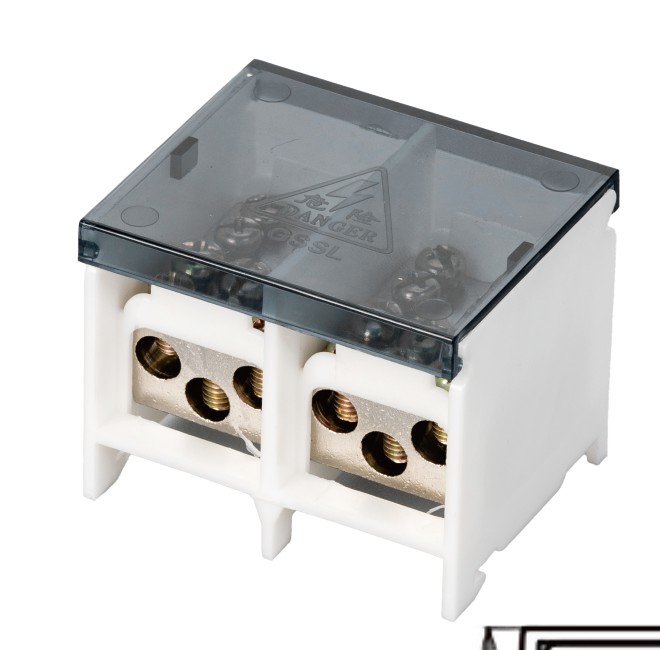

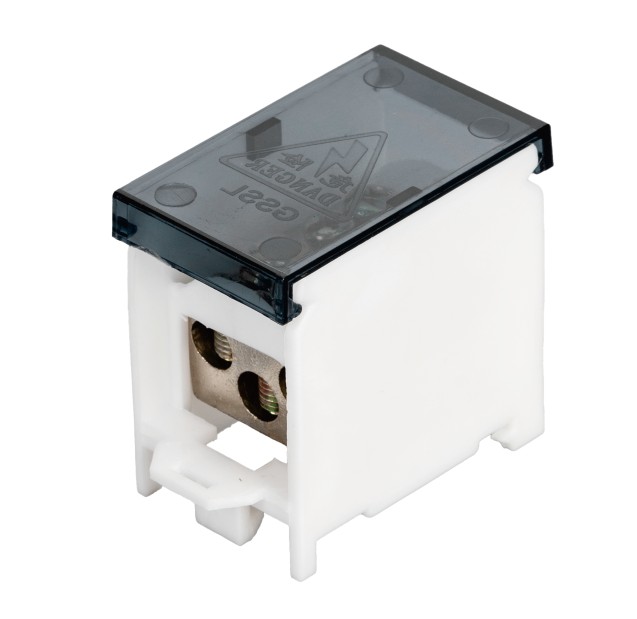

The SE-BT Series branching terminals enable efficient power distribution from a single main conductor to multiple branch circuits within a distribution board or control panel. SE-BT23 provides a 2-input / 3-output configuration, while SE-BT46 provides a 4-input / 6-output configuration. Both are rated 100A at 500V AC (50/60Hz) and accept main cable sizes from 1.5mm² to 35mm².
Durable
Rated 100 A / 500 V AC; main cable capacity up to 35 mm² for heavy-duty panels.
Reliable
SE-BT23 (2-in, 3-out) and SE-BT46 (4-in, 6-out); secure screw terminal connection.
Efficient
DIN rail mount; branching cable 1.5–16 mm²; eliminates junction box overhead.
