Cable Lug
6–300 mm²CopperMultiple Bolt Sizes

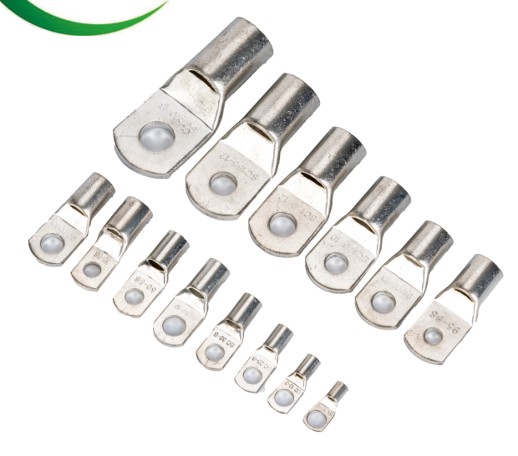

SE-CL Series copper compression cable lugs for terminating power cables onto bus bars, switchgear terminals and distribution boards. Available in a comprehensive range from SE-CL6 (6mm²) to SE-CL300 (300mm²), with multiple bolt hole diameter options (6.5mm, 8.5mm, 10.5mm, 12.5mm, 16.5mm). Both standard and short-barrel (S) variants available.

Enquire Now All Products

Durable

Electrolytic copper barrel and palm; tinned finish for corrosion resistance and long service life.

Reliable

Full range of crimp sizes 6 mm² to 120 mm²; M6, M8, M10 and M12 stud options.

Efficient

28 model variants; compatible with standard hydraulic crimp tools for fast installation.

Technical Data

Specifications

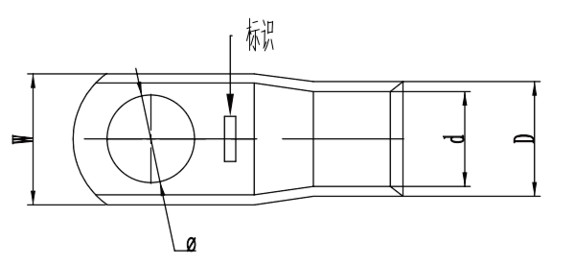

Cable Lug Dimensional Data
ModelD (mm)d (mm)L (mm)L1 (mm)S (mm)W (mm)Ø (mm)
SE-CL6-65.54.225.09.01.39.06.5
SE-CL6-85.54.225.09.01.310.38.5
SE-CL10-66.55.026.09.51.410.06.5
SE-CL10-86.55.026.09.51.411.08.5
SE-CL16-87.55.730.011.51.811.58.5
SE-CL25-69.07.035.013.02.013.06.5
SE-CL25-89.07.035.013.02.013.08.5
SE-CL25-109.07.035.013.02.014.010.5
SE-CL35-610.58.339.016.02.215.56.5
SE-CL35-810.58.339.016.02.215.58.5
SE-CL35-1010.58.339.016.02.215.510.5
SE-CL50-812.59.945.018.02.618.58.5
SE-CL50-8S12.59.745.018.02.816.08.2
SE-CL50-1012.59.945.018.02.618.510.5
SE-CL70-814.511.550.020.03.021.58.5
SE-CL70-8S15.412.047.519.03.416.58.2
SE-CL95-8S17.013.455.520.03.622.58.2
SE-CL120-8S19.716.066.528.04.022.08.2
Standards & ComplianceCu ConductorTinned FinishCrimp Type
Key Benefits

Features

  • Comprehensive range: 6mm² to 300mm²
  • Multiple bolt hole sizes: 6.5mm, 8.5mm, 10.5mm, 12.5mm, 16.5mm
  • Short-barrel (S) variants for space-constrained terminations
  • High-conductivity copper construction
  • Crimping type termination for reliable electrical contact
  • Suitable for power cable termination on bus bars and switchgear
  • Clean tinned finish for corrosion resistance
Typical Use Cases

Applications

  • Power cable termination on bus bars
  • Switchgear and switchboard cable connections
  • Distribution board main cable terminations
  • Industrial and commercial panel wiring
  • Motor and transformer power connections
  • Earthing and bonding applications
You May Also Need

Related Products

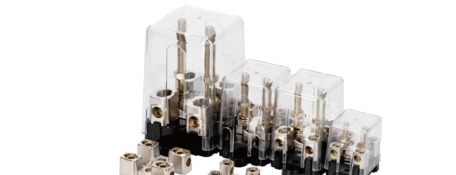

Line Tap

Line Tap

GSSL Series compact multi-wire connectors for branch circuit take-off. Rated 215A to 630A.

View Product

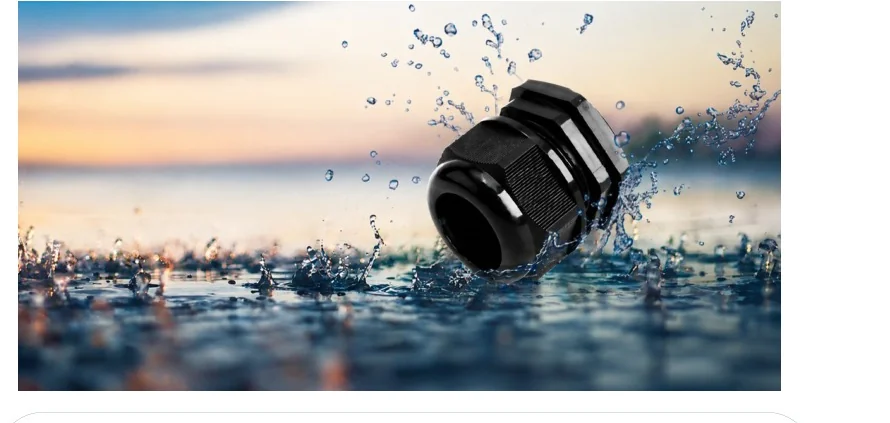

Cable Gland

Cable Gland

IP68-10 nylon cable glands in Metric and PG thread sizes. M8 to M63. PA66 UL approved.

View Product

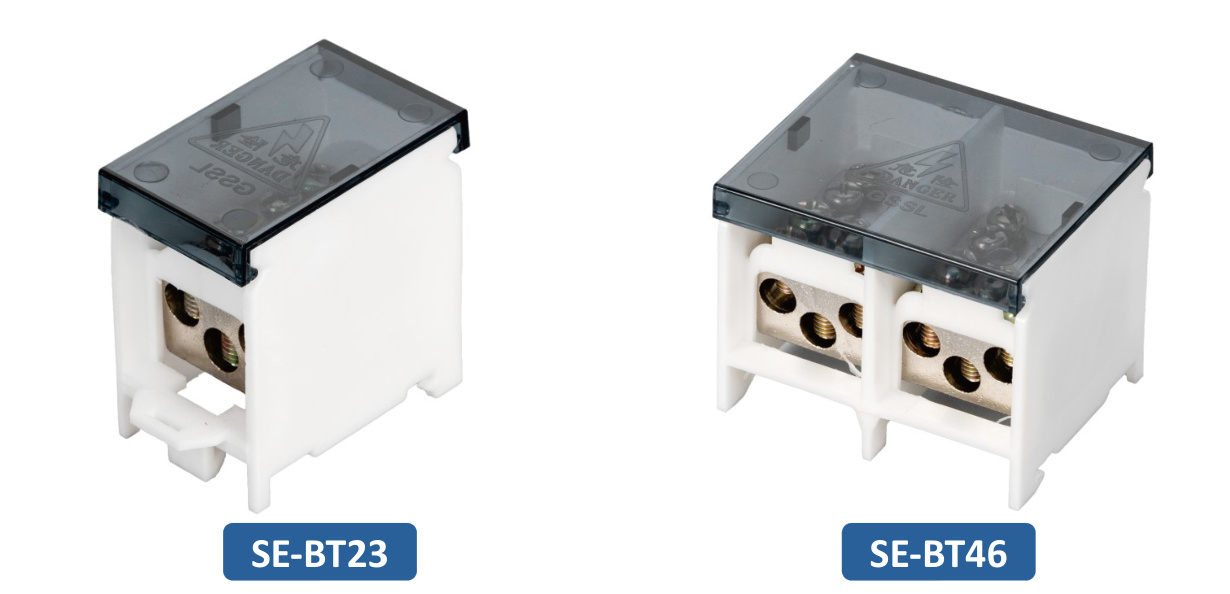

Branching Terminal
