Cable Gland

Technical Data

Specifications

SPECIFICATIONS
Material	Nylon PA66 (UL-Approved, UL94 V-2)
Optional Material	Nylon PA66 UL94 V-0 (Flame-Retardant)
Seal Material	EPDM (standard)
Thread Types	Metric (M8–M63) / PG (PG7–PG21)
Protection Degree	IP68-10
Static Working Temp.	−40°C to +100°C (up to +120°C short-term)
Dynamic Working Temp.	−20°C to +80°C (up to +100°C short-term)
Cable Range (M8)	1.0–4.8mm Ø
Cable Range (M63)	29–45mm Ø
Per Box	50 pcs (standard metric sizes)

Sizing Reference

Metric / PG Sizing Table

Metric Thread Series (M8 – M63)

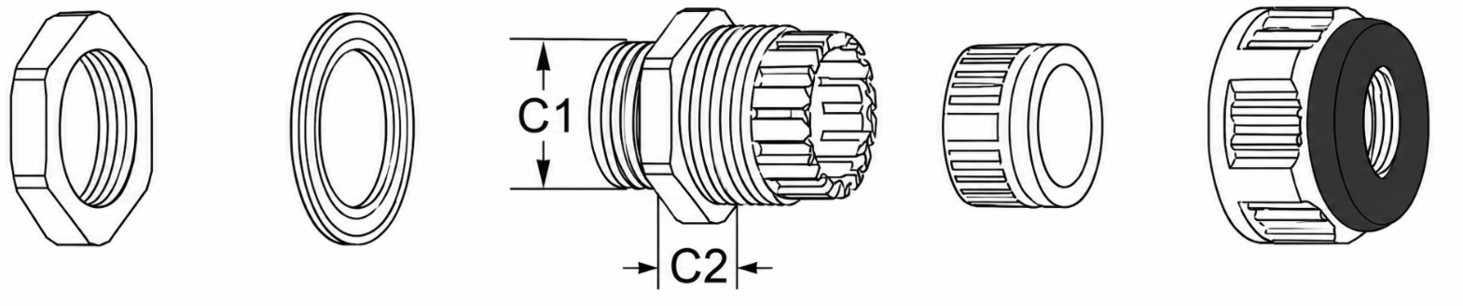

Thread Size	Model No.	Cable Range Ø (mm)	Thread OD C1 (mm)	Thread Len. C2 (mm)	Spanner A&F (mm)	Per Box
M8×1	SE-MGB8-2.5	1–2.5	8	7.5	12/13	50
M8×1	SE-MGB8-4.8	2–4.8	8	7.5	12/13	50
M10×1.25	SE-MGB10-3	1–3	10	8	15/13	50
M10×1.25	SE-MGB10-6	3–6	10	8	15/13	50
M12×1.5	SE-MGB12S-3	1–3	12	8.5	18/15	50
	SE-MGB12S-6.5	3–6.5	12	8.5	18/15	50
	SE-MCGB12SL-3	1–3	12	15	18/15	50
	SE-MGB12SL-6.5	3–6.5	12	15	18/15	50
	SE-MGB12-5	3–5.5	12	8.5	18/19	50
	SE-MGB12-8	4–8	12	8.5	18/19	50
	SE-MGB12L-5	3–5.5	12	15	18/19	50
	SE-MGB12L-8	4–8	12	15	18/19	50
M16×1.5	SE-MGB16S-5	3–3.5	16	10	22/19	50
	SE-MGB16S-8	4–8	16	10	22/19	50
	SE-MGB16SL-5	3–5.5	16	15	22/19	50
	SE-MGB16SL-8	4–8	16	15	22/19	50
	SE-MGB16-7	3–7	16	10	22/22	50
	SE-MGB16-10	6–10	16	10	22/22	50
	SE-MGB16L-7	3–7	16	15	22/22	50
	SE-MGB16L-10	6–10	16	15	22/22	50
M18×1.5	SE-MGB18-7	3–7	18	10	24/22	50
	SE-MGB18-10	6–10	18	10	24/22	50
	SE-MGB18L-7	3–7	18	15	24/22	50
	SE-MGB18L-10	6–10	18	15	24/22	50
M20×1.5	SE-MGB20S-9	5–9	20	10	27/24	50
	SE-MGB20S-12.5	6–12.5	20	10	27/24	50
	SE-MGB20SL-9	5–9	20	15	27/24	50
	SE-MGB20SL-12.5	6–12.5	20	15	27/24	50
	SE-MGB20-11	7–11	20	10	27/27	50
	SE-MGB20-13.5	9–14	20	10	27/27	50
	SE-MGB20L-11	7–11	20	15	27/27	50
	SE-MGB20L-13.5	9–14	20	15	27/27	50
M25×1.5	SE-MGB25S-11	5–11	25	12	33/37	50
	SE-MGB25S-14	9–14	25	12	33/37	50
	SE-MGB25-13	7–13	25	12	33/33	50
	SE-MGB25-18	13–18	25	12	33/33	50
	SE-MGB25L-13	7–13	25	12	33/33	50
	SE-MGB25L-18	13–18	25	12	33/33	50
M32×1.5	SE-MGB32-17.5	13–17.5	32	12	41/42	20
	SE-MGB32-25	18–25	32	12	41/42	20
	SE-MGB32L-17.5	13–17.5	32	15	41/42	20
	SE-MGB32L-25	18–25	32	15	41/42	20
M36×1.5	SE-MGB36-22	14–22	36	12	45/42	20
M36×1.5	SE-MGB36-25	18–25	36	12	45/42	20
M40×1.5	SE-MGB40-25	18–25	40	15	50/52	10
M40×1.5	SE-MGB40-31	26–31	40	15	50/52	10
M50×1.5	SE-MGB50-32	25–32	50	15	62/62	10
M50×1.5	SE-MGB50-41	30–41	50	15	62/62	10
M63×1.5	SE-MGB63-38	29–38	63	18	75/65	10
M63×1.5	SE-MGB63-45	35–45	63	18	75/65	10

PG Thread Series (PG7 – PG21)

Thread Size	Model No.	Cable Range Ø (mm)	Thread OD C1 (mm)	Thread Len. C2 (mm)	Spanner A&F (mm)	Per Box
PG7	SE-PGB7S-3	1–3	12.5	8	17/15	50
	SE-PGB7S-6	3–6.5	12.5	8	17/15	50
	SE-PGB7-5	3–5.5	12.5	8	17/19	50
	SE-PGB7-8	4–8	12.5	8	17/19	50
PG9	SE-PGB9-5.5	3–5.5	15.2	8	22/19	50
PG9	SE-PGB9-8	4–8	15.2	8	22/19	50
PG11	SE-PGB11-7	3–7	18.6	10	24/22	50
	SE-PGB11-10	6–10	18.6	10	24/22	50
	SE-PGB11L-7	3–7	18.6	15	24/22	50
	SE-PGB11L-10	6–10	18.6	15	24/22	50
PG13.5	SE-PGB13.5-9	5–9	20.4	10	27/24	50
PG13.5	SE-PGB13.5-12.5	7–12.5	20.4	10	27/24	50
PG16	SE-PGB16-11	5–11	22.5	10.8	30/27	50
PG16	SE-PGB16-14	8–14	22.5	10.8	30/27	50
PG19	SE-PGB19-11	5–11	24	11	30/27	50
PG19	SE-PGB19-14	8–14	24	11	30/27	50
PG21	SE-PGB21-13	7–13	28.3	12	36/33	50
PG21	SE-PGB21-18	12–18	28.3	12	36/33	50

Note: S = Short thread (C2 as shown); L = Long thread; SL = Short + Long variant. Spanner size A&F shown as Body/Locknut (mm). Per Box: 50 pcs for M8–M25 / PG7–PG21; 20 pcs for M32–M36; 10 pcs for M40–M63.

Standards & ComplianceIP68-10PA66 UL NylonEPDM Sealed

Key Benefits

Features

IP68-10 ingress protection
UL-approved Nylon PA66 material
Click-lock design for quick installation
Excellent corrosion, chemical and oil resistance
Wide cable size range (M8 to M63 Metric)
EPDM seals for reliable waterproof sealing
Available in UL94 V-0 flame-retardant option

Typical Use Cases

Applications

Electrical enclosure cable entry
Junction box cable sealing
Outdoor equipment waterproofing
Marine and transport cable installations
Industrial and hazardous area cable entry
Control panel cable ingress protection
