Line Tap

Line Tap

Up to 630AMulti-Wire600V AC

Compact multi-wire line tap connectors for branch circuit take-off from main cable runs without cutting the main cable. Secure screw clamping mechanism ensures reliable electrical contact. High conductivity design with durable metal construction. Available in a wide range of current ratings from 215A to 630A to suit various cable sizes. Models with 2 and 4 branch connections available.

Enquire Now All Products

Durable

Aluminium alloy and copper alloy construction; 215 A to 630 A rated for main distribution runs.

Reliable

Secure screw-clamp connections; rated 600 V AC 50/60 Hz; no main cable cutting required.

Efficient

2-branch and 4-branch variants; tap conductor 25–120 mm² for flexible distribution.

Technical Data

Specifications

SPECIFICATIONS
GSSL95 (215A)	Mains: 16–95mm² \| Branch: 10–25mm² \| 600V AC
GSSL150 (275A)	Mains: 50–150mm² \| Branch: 16–50mm² \| 600V AC
GSSL240 (400A)	Mains: 150–240mm² \| Branch: 16–95mm² \| 600V AC
GSSL500 (600A)	Mains: 185–500mm² \| Branch: 16–150mm² \| 600V AC
GSSL600 (630A)	Mains: 185–600mm² \| Branch: 16–95mm² \| 600V AC
E95D Series (215A)	Mains: 16–95mm² \| Branch: 10–25mm² \| 600V AC
E150D Series (275A)	Mains: 50–150mm² \| Branch: 16–50mm² \| 600V AC
E240D Series (400A)	Mains: 150–240mm² \| Branch: 16–95mm² \| 600V AC
Rated Voltage	600V AC / 50–60Hz
Clamping	Secure Screw Clamping

Model Reference

Full Model Code Table

Series	Model	Mains Cable (mm²)	Branch Cable (mm²)	Rating
E95D	E95D2B1	16–95	10–25	215A / 600V AC
E95D	E95D4B1	16–95	10–25	215A / 600V AC
E150D	E150D2B1	50–150	16–50	275A / 600V AC
E150D	E150D4B1	50–150	16–50	275A / 600V AC
E240D	E240D2B1	150–240	16–95	400A / 600V AC
E240D	E240D4B1	150–240	16–95	400A / 600V AC
GSSL95	GSSL95D2B1	16–95	10–25	215A / 600V AC
	GSSL95D2B2	16–95	10–25	215A / 600V AC
	GSSL95D4B1	16–95	10–25	215A / 600V AC
	GSSL95D4B2	16–95	10–25	215A / 600V AC
GSSL150	GSSL150D1B2	50–150	16–50	275A / 600V AC
	GSSL150D2B2	50–150	16–50	275A / 600V AC
	GSSL150D4B1	50–150	16–50	275A / 600V AC
	GSSL150D4B2	50–150	16–50	275A / 600V AC
GSSL240	GSSL240D1B2	150–240	16–95	400A / 600V AC
	GSSL240D2B2	150–240	16–95	400A / 600V AC
	GSSL240D4B1	150–240	16–95	400A / 600V AC
	GSSL240D4B2	150–240	16–95	400A / 600V AC
GSSL500	GSSL500D1B2	185–500	16–95	600A / 600V AC
	GSSL500D2B2	185–500	16–95	600A / 600V AC
	GSSL500D4B1	185–500	16–95	600A / 600V AC
	GSSL500D4B2	185–500	16–95	600A / 600V AC
GSSL600	GSSL600D1B2	185–600	16–95	630A / 600V AC
	GSSL600D2B2	185–600	16–95	630A / 600V AC
	GSSL600D4B1	185–600	16–95	630A / 600V AC
	GSSL600D4B2	185–600	16–95	630A / 600V AC
GSSL500+15	GSSL500D1B2+15	185–500	16–150	600A / 600V AC
	GSSL500D2B2+15	185–500	16–150	600A / 600V AC
	GSSL500D4B1+15	185–500	16–150	600A / 600V AC
	GSSL500D4B2+15	185–500	16–150	600A / 600V AC

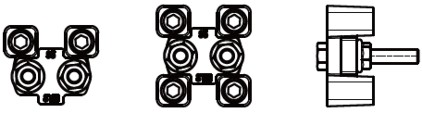

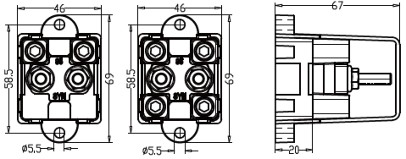

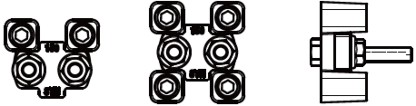

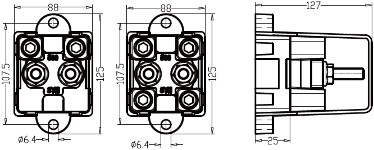

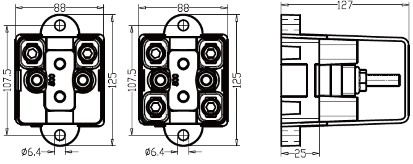

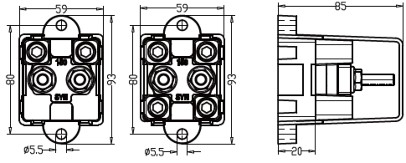

Model code key: D2 = 2 branch connections; D4 = 4 branch connections; B1 = 1 bolt clamping; B2 = 2 bolt clamping; +15 = extended branch port spacing. All models rated 600V AC, 50/60Hz. GSSL = screw-type aluminium alloy; E = compact copper alloy.

Standards & Compliance600V AC Rated50/60HzUp to 630A

Key Benefits
