Cable Gland with Flexible Conduit

Cable Gland Flexible

IP68-10Flexible ConduitPA66

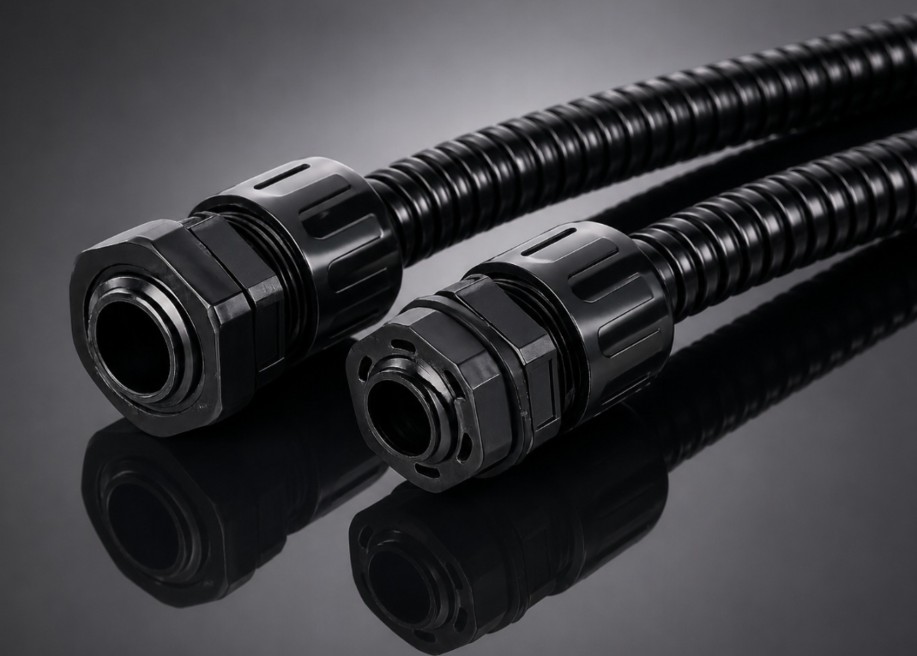

Cable gland with integrated flexible conduit connector (MGQ/PGQ and MGN types) for protected cable routing in exposed or vibration-prone installations. Same high-quality PA66 and EPDM construction as the standard cable gland range but with an integrated conduit fitting for routing flexible conduit to the enclosure entry point. Available in Metric thread sizes M12 to M63 with flexible conduit diameters from AD10 to AD54.5 (1/4-inch to 2-inch).

Enquire Now All Products

Durable

PA66 nylon body; rated −40°C to +100°C static, −25°C to +80°C dynamic use.

Reliable

IP68-10 rated; EPDM sealing with flexible conduit adapter for organised cable entry.

Efficient

Metric M12–M63 threads; ST (Short Thread) variants for restricted-space installations.

Technical Data

Specifications

SPECIFICATIONS
Types	MGQ/PGQ (with conduit) / MGN (straight conduit)
Thread Sizes	M12 × 1.5 to M63 × 1.5
Conduit Sizes	AD10.0 (1/4") to AD54.5 (2")
Material	Nylon PA66 (UL94 V-2)
Seal Material	EPDM
Protection Degree	IP68-10
Static Working Temp.	−40°C to +100°C
Dynamic Working Temp.	−20°C to +80°C
Thread Length	9–25mm depending on size
Per Roll	50m (conduit)

Sizing Reference

Metric Flexible Conduit Sizing Table

Thread Size	Model No.	Conduit Size (mm)	Type	Conduit Size (inch)	Thread OD (mm)	Thread Length (mm)	Per Roll (m)
M12×1.5	SE-M12-AD10	AD10.0	MGQ/PGQ	1/4"	12	9	50
M16×1.5	SE-M16-AD13-ST	AD13.0	MGQ/PGQ (S)	5/16"	16	10	50
	SE-M16-AD13	AD13.0	MGQ/PGQ	5/16"	16	15	50
	SE-M16-AD15.8-ST	15.8	MGQ/PGQ (S)	3/8"	16	10	50
	SE-M16-AD15.8	15.8	MGQ/PGQ	3/8"	16	15	50
	SE-M16-AD18.5-ST	18.5	MGQ/PGQ (S)	3/8"	16	10	50
	SE-M16-AD18.5	18.5	MGQ/PGQ	3/8"	16	15	50
M20×1.5	SE-M20-AD15.8-ST	15.8	MGQ/PGQ (S)	3/8"	20	10	50
	SE-M20-AD15.8	15.8	MGQ/PGQ	3/8"	20	15	50
	SE-M20-AD18.5-ST	18.5	MGQ/PGQ (S)	3/8"	20	10	50
	SE-M20-AD18.5	18.5	MGQ/PGQ	3/8"	20	15	50
	SE-M20-AD21.2-ST	21.2	MGQ/PGQ (S)	1/2"	20	10	50
	SE-M20-AD21.2	21.2	MGQ/PGQ	1/2"	20	15	50
M25×1.5	SE-M25-AD21.2-ST	21.2	MGQ/PGQ (S)	1/2"	25	12	50
	SE-M25-AD21.2	21.2	MGQ/PGQ	1/2"	25	15	50
	SE-M25-AD25.0-ST	25.0	MGQ/PGQ (S)	3/4"	25	12	50
	SE-M25-AD25.0	25.0	MGQ/PGQ	3/4"	25	15	50
	SE-M25-AD28.5-ST	28.5	MGQ/PGQ (S)	3/4"	25	12	50
	SE-M25-AD28.5	28.5	MGQ/PGQ	3/4"	25	15	50
M32×1.5	SE-M32-AD34.5-ST	34.5	MGQ/PGQ (S)	1"	32	12	20
M32×1.5	SE-M32-AD34.5	34.5	MGQ/PGQ	1"	32	15	20
M40×1.5	SE-M40-AD42.5	42.5	MGQ/PGQ	1-1/4"	40	15	10
M50×1.5	SE-M50-AD42.5	42.5	MGQ/PGQ	1-1/4"	50	22	10
M50×1.5	SE-M50-54.5	54.5	MGQ/PGQ	2"	40	22	10
M63×1.5	SE-M63-AD54.5	54.5	MGQ/PGQ	2"	63	25	10

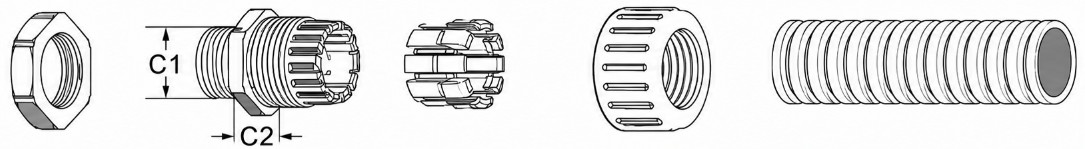

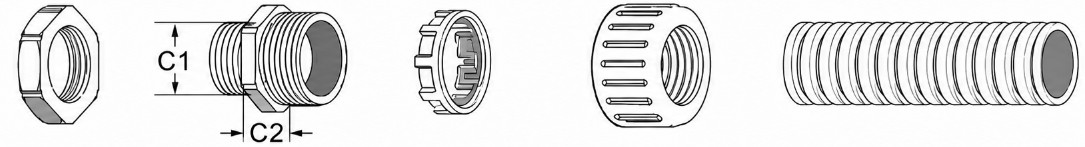

Note: ST = Short Thread variant; MGQ/PGQ = Metric/PG thread with flexible conduit. Conduit sold per roll (50 m for M12–M25, 20 m for M32, 10 m for M40–M63). Thread length: C2 column matches short (ST) or standard variants.

Standards & ComplianceIP68-10PA66 Nylon BodyEPDM Sealed
